What is the Difference Between UNF and UNJF Threads?

At first glance, UNF and UNJF threads might appear almost identical — a difference of just one letter that’s easy to overlook, especially for someone who doesn’t deal with thread specifications on a daily basis. However, this seemingly minor detail can lead to significant issues if misunderstood or ignored.

Despite their similar appearance, UNF and UNJF are fundamentally different thread types, each designed for specific engineering requirements. The UNJF thread, for example, features a larger root radius, which enhances its fatigue resistance — a critical factor in aerospace and high-stress applications. Such threads definitely need a different type of gauge.. Choosing the wrong type not only affects performance, but also compromises safety and parts compatibility. Therefore understanding the subtle but important differences between these thread standards is essential in precision engineering and manufacturing. What is the Difference Between UNF and UNJF Threads?

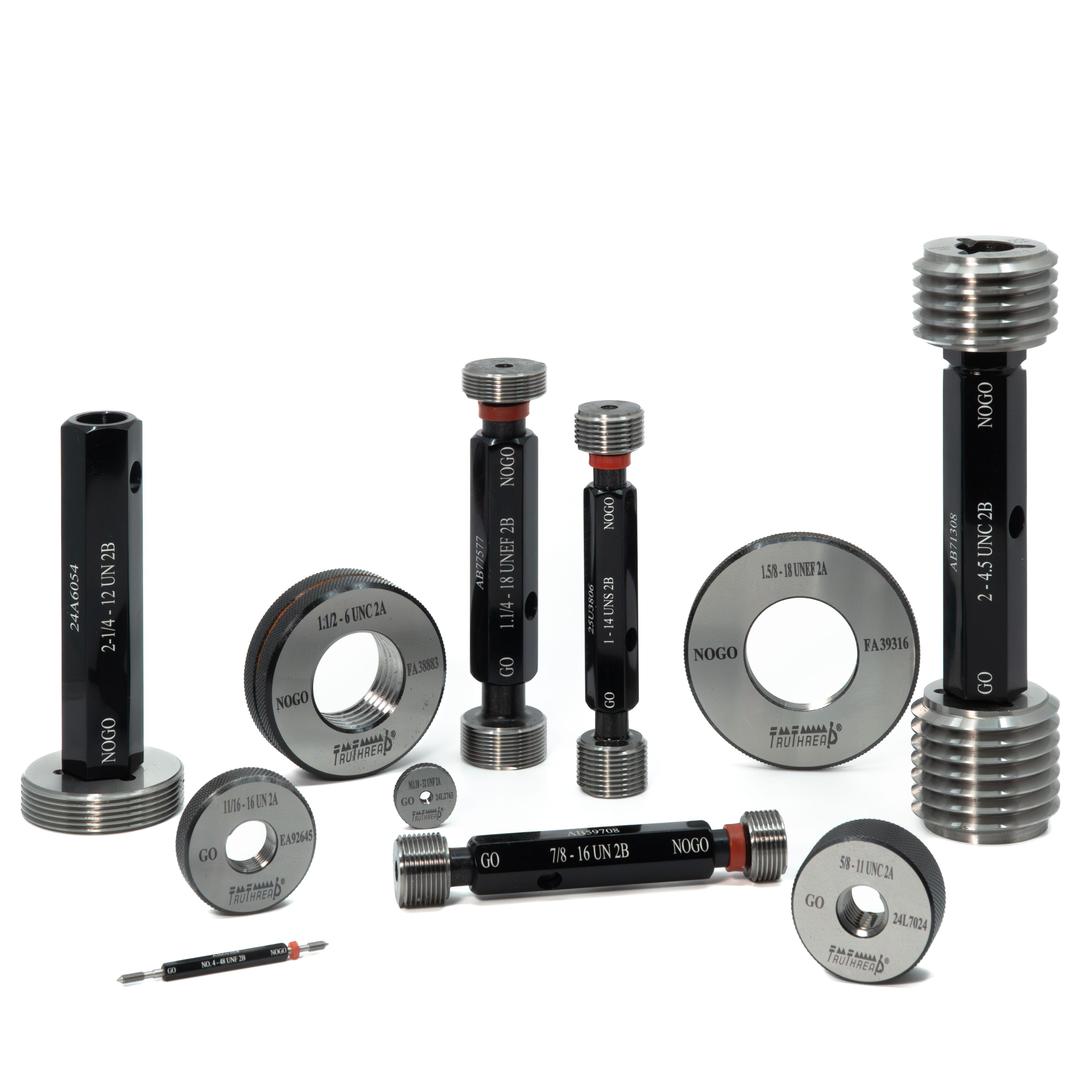

🔧 Understanding UNF Thread Gauges

Unified Thread Gauges with their UNF (Unified National Fine) threads are defined by their fine pitch — namely threads are more closely spaced than in UNC (Unified National Coarse) threads. This configuration provides higher tensile strength, better load distribution, and enhanced resistance to vibration, making UNF threads ideal for applications that demand tight tolerances and secure fastening.

Key Features:

  • Thread Pitch: Fine threads with a standard 60° flank angle.
  • Applications: Commonly used in automotive, manufacturing, and general machinery applications.
  • Standards: Defined under ANSI/ASME B1.1

Gauging Specifications:

  • Plug Gauges (Internal Threads): Available in classes 1B (loose fit), 2B (medium fit), and 3B (tight fit).
  • Ring Gauges (External Threads): Available in classes 1A, 2A, and 3A, corresponding to the internal thread classes.

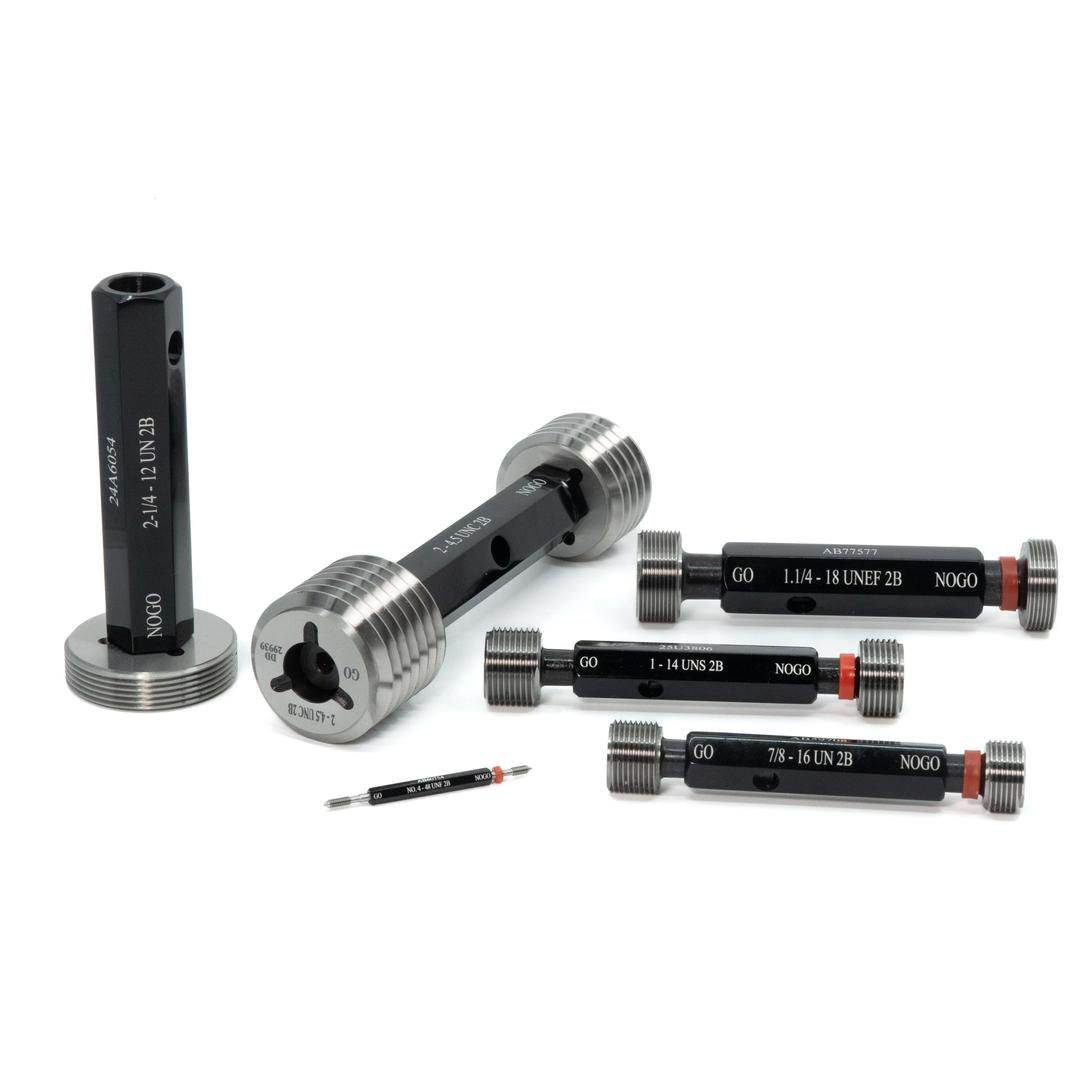

UNF thread gauges are essential tools for precise inspection of fine-pitch threads as they ensure reliable connections and durability in their respective applications. Using standardized gauges helps components meet technical requirements and improves efficiency of manufacturing processes. Unified thread plugs

✈️ Exploring UNJF Thread Gauges

UNJF (Unified National Fine Thread with Larger Root Radius) threads are a specialized variation of the standard UNF thread series. Designed specifically for demanding applications where enhanced fatigue resistance and durability are critical, UNJF threads feature a larger root radius. Their design significantly improves stress distribution along the thread profile and reduces the risk of crackingand thread failure under cyclical or high-stress loading conditions.

Key Features:

  • Thread Geometry: Retains the standard 60° flank angle but features a larger root radius.
  • Applications: Predominantly used in aerospace, military, and high-performance automotive industries.
  • Standards: Defined under ASME B1.15 and SAE AS8879.

Gauging Specifications:

  • Plug Gauges (Internal Threads): Typically manufactured to class 3B for precision fit.
  • Ring Gauges (External Threads): Typically manufactured to class 3A for precision fit.

Due to their specialized geometry, UNJF threads require precision gauging to ensure that the enhanced root radius and thread form meet strict fatigue resistance criteria. At TruThread Europe we supply a full range of UNJF plug and ring gauges manufactured to exacting tolerances, ensuring your threads conform to the necessary standards for high-stress applications.

⚖️ Difference between UNF and UNJF





      ⚖️ Feature
      UNF Threads
      UNJF Threads






      Root Radius
      Standard
      Larger for improved fatigue resistance




      Applications
      General-purpose
      High-stress, fatigue-critical environments




      Thread Fit Classes
      1A/1B, 2A/2B, 3A/3B
      Primarily 3A/3B for tighter tolerances




      Manufacturing
      Standard machining processes
      Requires precise control for larger root radius




      Interchangeability
      Widely interchangeable within UNF standards
      Not always interchangeable with UNF threads

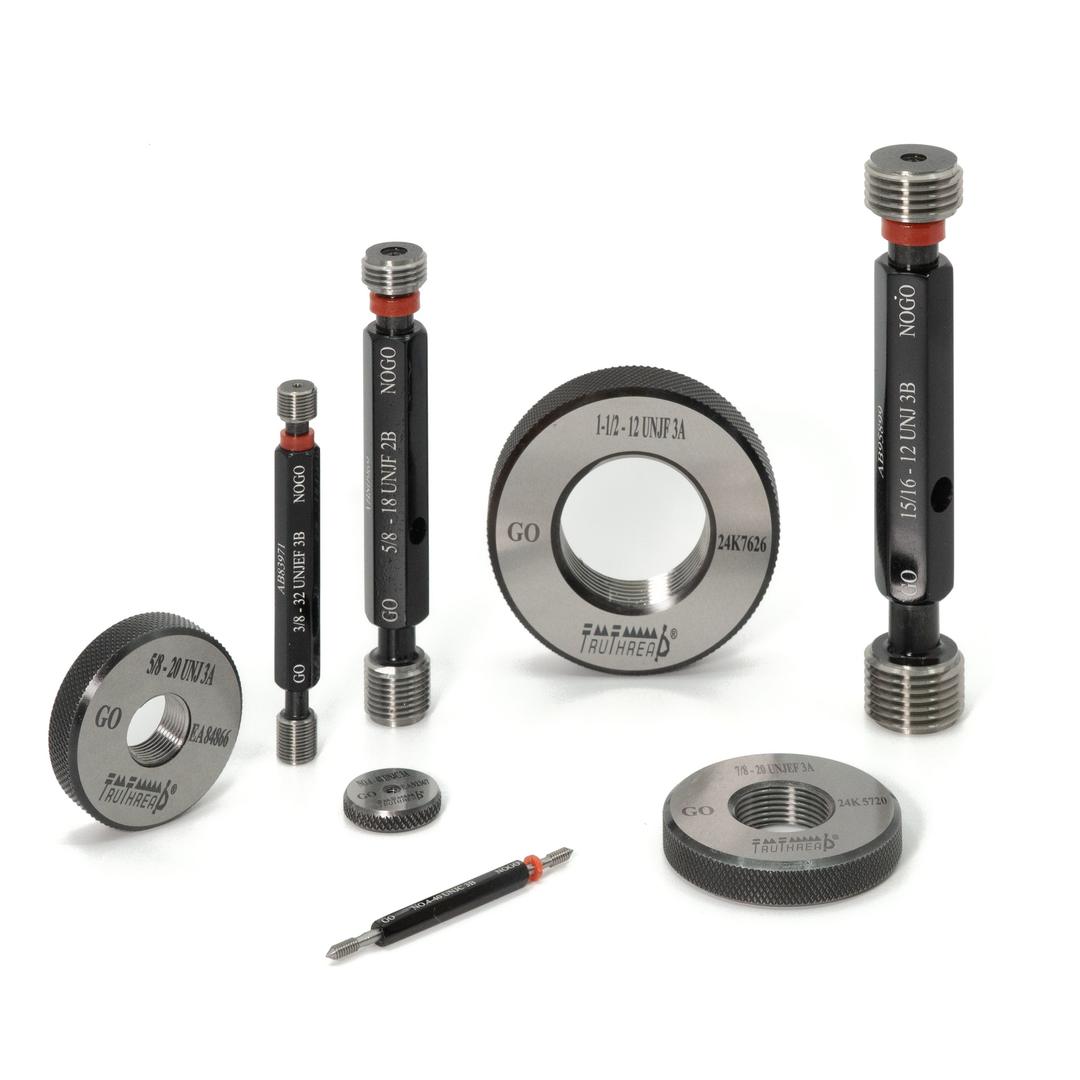

UNJ thread gauges

🛠️ Selecting the Right Thread Type

When deciding between UNF and UNJF threads, consider the following factors: Load Conditions: For applications involving high stress or cyclical loading, UNJF threads ensure superior fatigue resistance.

Precision Requirements: UNJF threads provide tighter tolerances, which makes them suitable for precision assemblies.

Industry Standards: Certain industries, like aerospace and military, can require the use of UNJF threads for specific components.

Cost Considerations: UNF threads are generally more economical and easier to manufacture, which makes them suitable for general-purpose applications.

Understanding the difference between UNF and UNJF threads is crucial for their proper application.. While UNF threads are suitable for general-purpose use, UNJF threads are designed for high-stress environments, where enhanced fatigue resistance is critical. By considering the specific requirements of your project you can ensure the reliability and durability of your threaded connections.
