What is the Differences Between Class A and Class B Tolerances for G-Pipe Thread Gauges

When it comes to G-pipe thread gauges, choosing the right tolerance class can significantly impact your project’s performance. The two primary tolerance classes—Class A and Class B—cater to different precision needs and applications. Here's a detailed breakdown to help clarify their distinctions.

What Are G-Pipe Thread Gauges?

G-pipe thread gauges are essential tools used to measure and verify the accuracy of pipe threads in industrial and mechanical applications. They ensure that threaded pipes and fittings will join correctly, avoiding leaks and other mechanical failures. However, not all threads are created equal, and tolerances in their manufacturing play a crucial role in their functionality.

Which Should You Choose: G-Pipe Class A or Class B Tolerance

Tolerance refers to the allowable deviation in measurement between the thread dimensions of a gauge and the threads it measures. Tight tolerances lead to a more precise fit between components, while looser tolerances allow for slight variations, often providing flexibility in less critical applications.

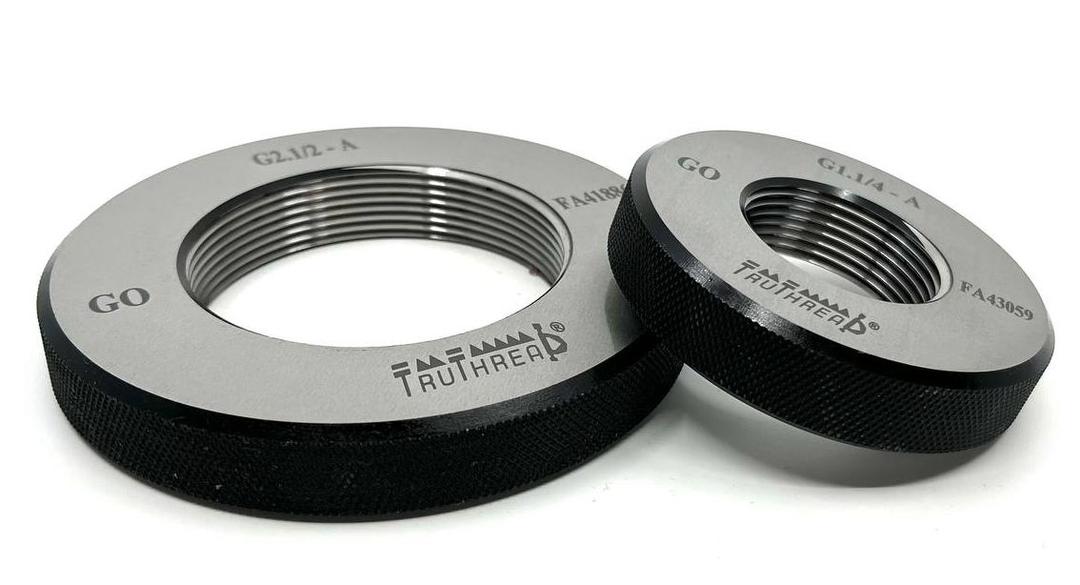

G-Pipe ring Gauge Class A Tolerance: Precision at Its Best

Class A for G ring gauges is the tighter of the two tolerance classes. This means the pitch diameter tolerance—the allowable variation in the diameter of the threaded part—is more restricted. In practical terms, the tighter tolerance ensures that threads fit together more securely. If your application demands high levels of accuracy, such as in high-pressure or critical systems, Class A gauges are your go-to. They reduce the risk of thread failure, offer better sealing, and maintain long-term reliability.

Class A tolerance is particularly useful in industries where precision is non-negotiable, such as aerospace, hydraulics, and other applications where the stakes are high, and even the smallest deviation can cause significant issues.

G-Pipe ring Class B Tolerance: Flexibility and Practicality

Class B, on the other hand, has a broader pitch diameter tolerance. This makes it less precise but more practical for general-use applications. Class B ring gauges are often used in standard plumbing, HVAC, and other sectors where the demands for precision are not as stringent. The increased tolerance allows for easier manufacturing and can accommodate more variability in the production process without compromising functionality.

While the threads in Class B may not fit as tightly as in Class A, they are still reliable for non-critical applications. The wider tolerance means that parts are easier and faster to produce, which can reduce costs and production time in scenarios where absolute precision is unnecessary.

Why Choose One Over the Other?

The choice between Class A and Class B ring gauges largely depends on the application requirements. If your project involves critical systems where even minor deviations in threading could lead to failure (e.g., in high-pressure gas or chemical lines), Class A offers peace of mind with its tight control over thread dimensions. For less stringent applications like water pipes or general construction projects, Class B tolerance provides adequate accuracy without the cost or complexity of Class A precision.

The difference between Class A and Class B tolerance for G-pipe ring gauges boils down to how much precision is necessary for your application. Class A, with its stricter limits, is ideal for high-risk environments, while Class B offers flexibility and cost-effectiveness for standard applications. Understanding these distinctions ensures that you select the right gauge for optimal performance and safety.

In summary, the choice between Class A and Class B tolerance is about balancing precision and practicality. Knowing the demands of your system will guide you in making the right decision.
